Tantalum Carbide (TaC) Coatings
Description
Momentive Technologies’ unique carbide coatings provide exceptional protection for graphite in harsh semiconductor and compound semiconductor material processing. The results are extending graphite component life, maintaining reaction stoichiometry and suppressing impurity migration into epitaxy and crystal growth applications to provide improved yield and quality benefits.
Our Tantalum Carbide (TaC) and other metal carbide coatings guard key furnace and reactor components at elevated temperatures (higher than 2200°C) against hot ammonia, hydrogen and silicon vapors and molten metals. Momentive Technologies can provide our coating either as a toll-coating or on a full-service basis thanks to our extensive graphite machining and measurement capabilities to handle your customized requirements, and our team of expert engineers is always here to help you design the right solutions for you and your specific applications.

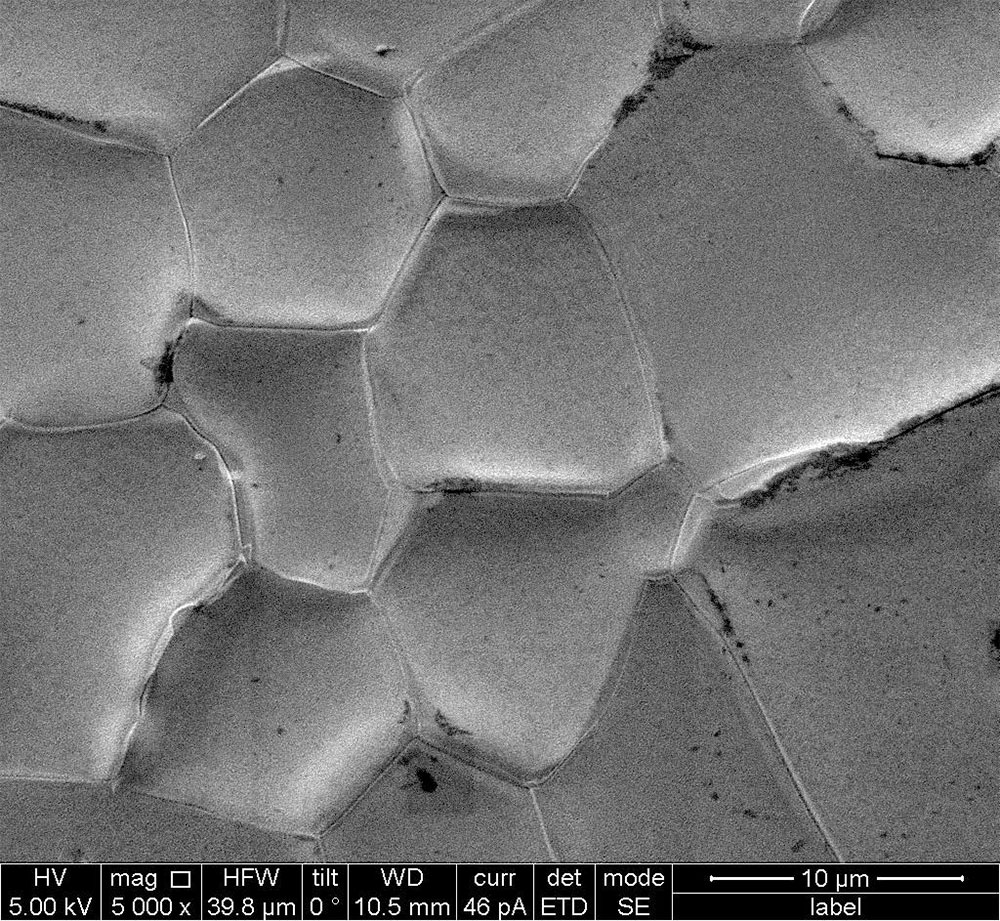

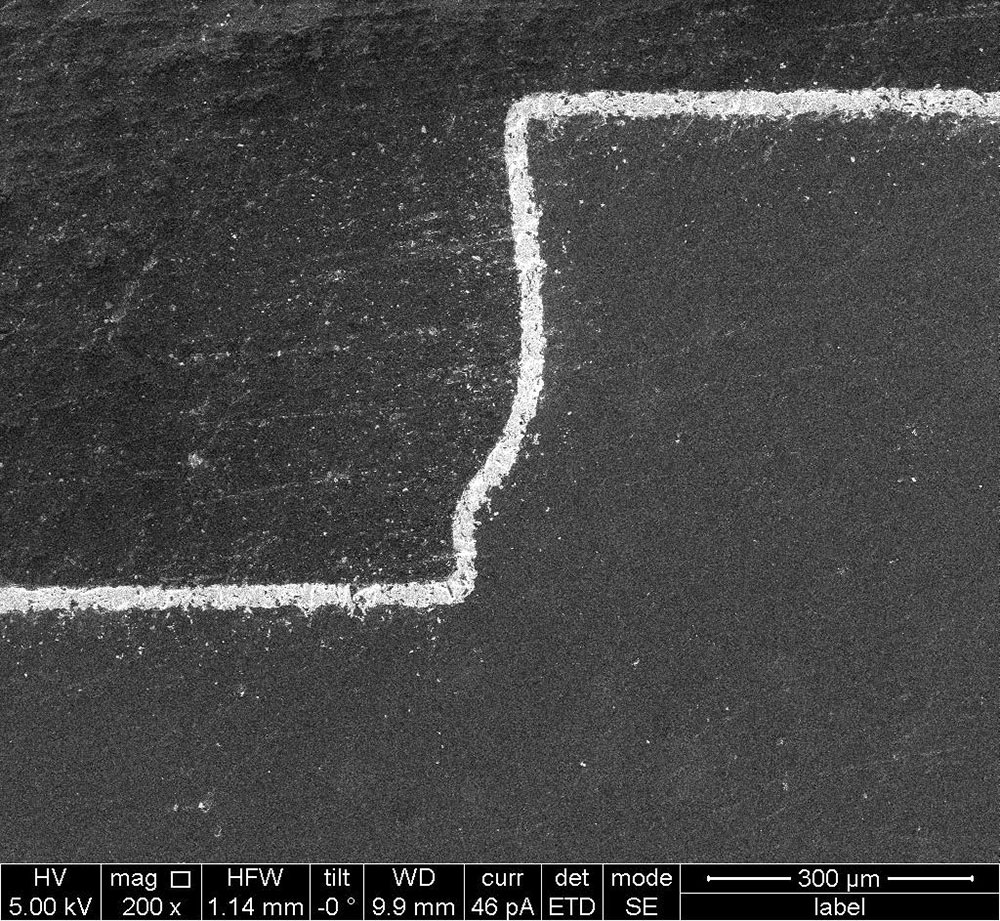

TaC Coating with High Crystallinity and Excellent Uniformity
10µm
300µm
Applications

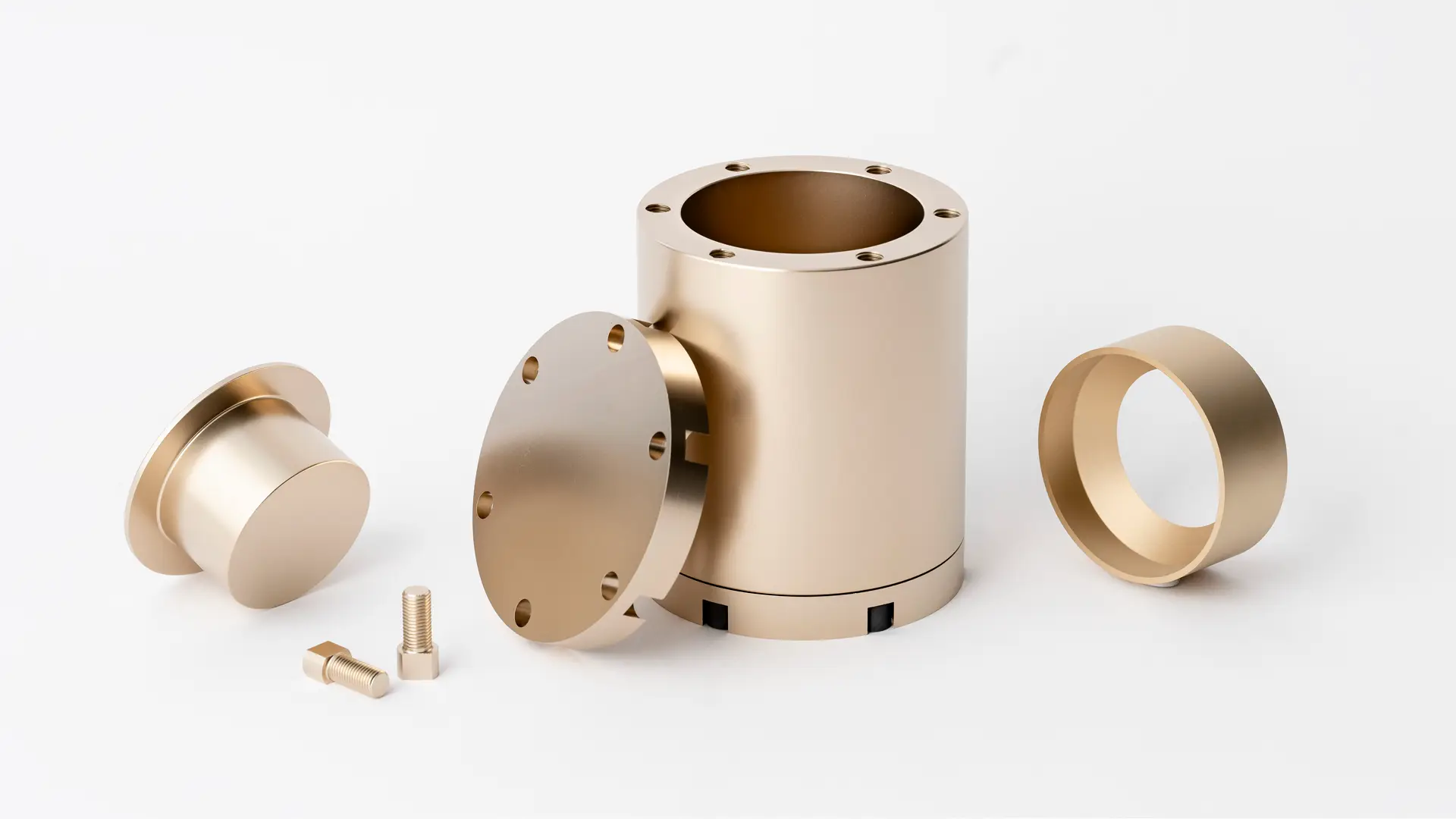

- GaN and SiC Epitaxial CVD reactor components, including wafer carriers, satellite disks, showerheads, ceilings and susceptors
- SiC, GaN and AlN crystal growth components, including crucibles, seed holders, guide rings and filters
- Industrial components, including resistive heating elements, nozzles, masks, brazing fixtures, and evaporation crucibles
Features and Benefits
- Temperature stability over 2000°C enables ultra-high temperature operation
- Resistance to H2, NH3, SiH4, and Si provides protection in harsh chemical environments
- Resistance to thermal shock accelerates operation cycles
- Strong adhesion to graphite ensures long life without coating delamination
- Ultra-high purity eliminates unwanted impurities or contaminations
- Conformal coating coverage achieves tight dimension tolerance
Technical Specs
Purity comparison of TaC coating and purified research-grade graphite
| Unit (ppm) | B | N | O | Si | S | Cl | Nb |
|---|---|---|---|---|---|---|---|
|
TaC |
< 0.01 |
15 |
40 |
< 0.01 |
< 0.01 |
14 |
14 |
|
Graphite |
1 |
480 |
260 |
2 |
5 |
2 |
< 0.01 |
Typical values.
TaC vs. SiC
| Density (gm/cm3) | Emissivity | CTE (× 10-6/K) | Hardness (HK) | Resistance (Ohm-cm) | Thermal Stability | Etch Rate in NH3(µm/hr) | Etch Rate in H2(µm/hr) | Thickness Variation | |
|---|---|---|---|---|---|---|---|---|---|
|
TaC |
14.3 |
0.3 |
6.3 |
2000 |
1×10-5 |
> 2200°C |
0.2 |
0.1 |
~5% |
|
SiC |
3.2 |
0.8 |
4.5 |
2800 |
2×10-3 |
< 1600°C |
1.5 |
1.7 |
~10% |
Typical values.
